Liberty InstantOn startup for cloud native Java applications
This article was published when Liberty InstantOn was still beta. Liberty InstantOn moved out of beta as of the Liberty 23.0.0.6 release. For the latest information about Liberty InstantOn, see Faster startup for containerized applications with Open Liberty InstantOn in the Open Liberty docs.
Do you want cloud-native Java applications that can start up in milliseconds, without compromising on throughput, memory, development-production parity, or Java language features? The Open Liberty 22.0.0.11-beta brings you InstantOn, an exciting new feature that provides incredibly fast startup times for MicroProfile and Jakarta EE applications.
In serverless environments, application startup times are important. InstantOn application instances can scale to zero when the application is not in use. Scaling to zero can help reduce the overall cloud costs for deployed applications by reducing the overall number of application instances when there are no ongoing requests. When activity picks up for the application, new instances can start up quickly, without introducing high latency for the user.
How Open Liberty enables InstantOn startup
To enable InstantOn, Open Liberty uses new features of the OpenJ9 JVM and a Linux technology called Checkpoint/Restore In Userspace CRIU to take a checkpoint of the application process as it starts. This checkpoint is a snapshot of the running application process that can be persisted and then quickly restored to bring the application process back into the state it was in when the checkpoint was taken. This process enables the Liberty instance, along with any configured applications, to be restored multiple times into distinct instances of your application.

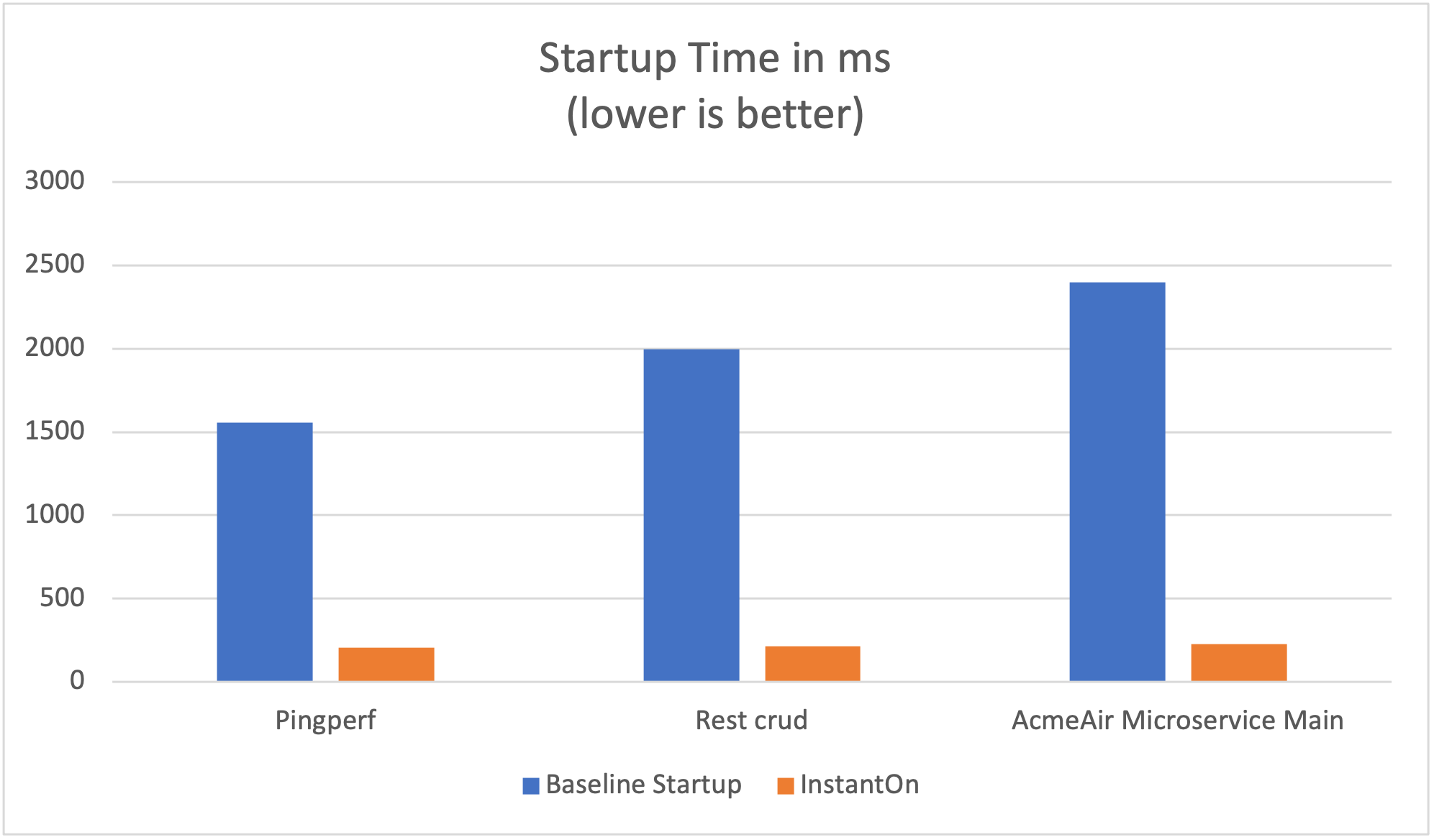

To see just how fast InstantOn startup is, skip to the "How fast is it?" section. For more details on the advantages of this approach, see the Fast JVM startup with OpenJ9 CRIU Support blog post and this earlier Open Liberty blog post where we first discussed the potential of CRIU for faster startup of Java applications.
The Open Liberty InstantOn feature makes it easy for you to try it out by providing a new checkpoint action, which can be executed against your existing Open Liberty server configurations. With the checkpoint action, you specify a phase at which you want the Liberty startup process to stop and save a checkpoint. When Liberty is launched, it will detect the saved checkpoint process and resume the process from the state that it was saved in during the checkpoint action.
Set up the example application project
Before we get into the details of how the checkpoint action works, let’s set up a working example. For this example, we will have a look at the Getting started with Open Liberty guide. If you want to follow along, start by cloning the Git repository for this guide and use the projects that are provided inside:
git clone https://github.com/openliberty/guide-getting-started.git
cd guide-getting-startedWe will work within the finish/ directory for this demonstration. To try out the application, run the following Maven goal to build the application and deploy it to Open Liberty:
cd finish
mvn liberty:runAfter you see the following message, your application server is ready:
The defaultServer server is ready to run a smarter planet.Check out the service at the http://localhost:9080/dev/system/properties URL.
After you finish checking out the application, stop the Open Liberty server by pressing CTRL+C in the command-line session where you ran the server.
To build the WAR for the application run the following :
mvn packageThis command builds a target/guide-getting-started.war archive. We can now include this WAR in a container image that uses the InstantOn feature.
Containerizing the application
For an application to use Open Liberty InstantOn support, it must first be containerized using the Open Liberty beta InstantOn image. For general information about how to containerize applications with Open Liberty, see the Containerizing microservices guide or the Containerizing microservices with Podman guide. If you are unfamiliar with Podman, follow the Podman guide first because the Open Liberty InstantOn support currently requires the use of Podman. Support for Docker should come later, once Docker supports the capabilities that CRIU requires.
Containerize an application using the Open Liberty Beta InstantOn image
The Liberty InstantOn beta image contains the prerequisites for building an application container image with a checkpoint server process. Applications can use the Liberty InstantOn beta image as a base to build their own application container images and from that create their own application container image with a checkpoint process. This involves the following steps:
Prerequisites to checkpoint/restore a containerized application
Currently, the beta of Open Liberty InstantOn only supports running on x86-64/amd64 architectures. To build and run container images that use criu, the host Operating System needs a few prerequisites installed. All our testing was done on RHEL 8.6 and RHEL 9.0. Other Linux distributions and versions might be possible if they have the necessary prerequisites. The following conditions are required:
-
The kernel must support the Linux CAP_CHECKPOINT_RESTORE capability. This capability was introduced in kernel version 5.9, but was backported to RHEL kernel versions used in RHEL 8.6.
-
The latest available version of Podman for the Linux distribution must be installed.
-
Podman must be configured to use the
crunorrunccontainer runtime. -
If you use the
runccontainer runtime, then version 1.1.3 or higher is required so that you have the recent fix torunc. This fix enables the successful mount of/proc/sys/kernel/ns_last_pidin the container.
Create the Dockerfile for the application
For the Getting started with Open Liberty example, the first step is to create a Dockerfile that provides the instructions to create a containerized version of the application. Note that podman also supports using the Containerfile format for building container images.
For this example, we will use an official image from the IBM Container Registry (ICR), icr.io/appcafe/open-liberty:beta, as the parent image. This image is tagged with the word beta, meaning it includes all the Liberty beta features as well as all the Liberty features from the full image. The image is tagged with instanton, meaning it includes all the prerequisites for producing a checkpoint process image, such as the necessary criu binary files.
The Dockerfile for the getting-started application already exists at finish/Dockerfile. Edit the existing finish/Dockerfile and change the FROM instruction to use the icr.io/appcafe/open-liberty:beta parent image. After you save the Dockerfile, it should look something like this:
FROM icr.io/appcafe/open-liberty:beta
ARG VERSION=1.0
ARG REVISION=SNAPSHOT
LABEL \
org.opencontainers.image.authors="Your Name" \
org.opencontainers.image.vendor="IBM" \
org.opencontainers.image.url="local" \
org.opencontainers.image.source="https://github.com/OpenLiberty/guide-getting-started" \
org.opencontainers.image.version="$VERSION" \
org.opencontainers.image.revision="$REVISION" \
vendor="Open Liberty" \
name="system" \
version="$VERSION-$REVISION" \
summary="The system microservice from the Getting Started guide" \
description="This image contains the system microservice running with the Open Liberty runtime."
COPY --chown=1001:0 src/main/liberty/config/ /config/
COPY --chown=1001:0 target/*.war /config/apps/
RUN configure.shBuilding the application container image
For criu to be able to take a checkpoint of and restore a process, the criu binary must be granted additional Linux capabilities. In particular, for Open Liberty, it needs to be granted cap_checkpoint_restore, cap_net_admin and cap_sys_ptrace. The Open Liberty InstantOn beta image includes the criu binary with the necessary capabilities already granted to the criu binary file. For the criu binary to be given access to its assigned capabilities at run time, the container that is running criu must also be granted the necessary capabilities when it is launched. You can grant these capabilities to the container in one of two ways:
-
Use a privileged container using the
--privilegedoption -
Assign specific capabilities using
--cap-addoptions
When you use Docker, the daemon typically has root authority. This authority allows it to grant any requested capabilities when it launches a container. With Podman, there is no daemon, so the user who launches the container must have the authority to grant it the necessary Linux capabilities. You have this authority when you run as root or use sudo to run the podman commands. For the purposes of this example, we assume you are running the podman commands as the root user.
With that understanding, we can now build the container image by using the podman build command. From the finish/ directory, run the following command to build the container image for the application:
podman build -t getting-started .This command creates the getting-started container image. However, this container image does not contain any checkpoint image files that can be used for InstantOn startup. You can run this application container image with the following command:
podman run --name getting-started --rm -p 9080:9080 getting-startedNote the amount of time Liberty takes to report it has been started and check out the service running in the container at the http://localhost:9080/dev/system/properties URL. After you finish checking out the application, stop the running container by pressing CTRL+C in the command-line session where you ran the podman run command.
Checkpoint an application in-container
Open Liberty has three phases during the startup process where a checkpoint can occur:
-
features- This is the earliest phase where a checkpoint can happen. The checkpoint occurs after all of the configured Open Liberty features are started, but before any processing occurs for the installed applications. Note that this checkpoint phase has been removed, see New enhancements for Liberty InstantOn in 23.0.0.2-beta. -
beforeAppStart- The checkpoint happens after processing the configured application metadata. If the application has any components that get run as part of the application starting, the checkpoint is taken before executing any code from the application. -
afterAppStart- This is the last phase where a checkpoint can happen, so it has the potential to provide the fastest startup time when restoring the application instance. The checkpoint happens after all configured applications are reported as started. This phase happens before opening any ports for listening to incoming requests for the applications.
The afterAppStart phase typically provides the quickest startup time for an application, but it also might cause some application code to run before the server process checkpoint happens. This might lead to undesired behavior when restoring the checkpoint process if the application holds on to some state that should not be restored into more than one concurrent instance of the application. For example, connecting to an outside resource such as a database before the checkpoint is taken results in a failure to restore many instances of such a process since this would try to restore the same connection multiple times. However, If your application initialization does not perform operations such as opening database connections, you might be able to use the afterAppStart phase for the checkpoint.
After an application container image is built, it can be used to checkpoint the application process at one of the previously described checkpoint phases (features, beforeAppStart, afterAppStart). You can specify a phase for your checkpoint by using the --env option to podman run to set the value for WLP_CHECKPOINT to one of the available checkpoint phases. For this example, use the afterAppStart phase by running the following podman command:
podman run \
--name getting-started-checkpoint-container \
--privileged \
--env WLP_CHECKPOINT=afterAppStart \
getting-started-
The
--privilegedoption is required to perform thecriucheckpoint in-container. -
The
WLP_CHECKPOINTenvironment variable is used to specify the checkpoint phase. For the getting-started example theafterAppStartcheckpoint phase will provide the fastest restore time.
This will start the container with the application running on Open Liberty. After Open Liberty starts, it performs the checkpoint at the phase specified by the WLP_CHECKPOINT environment variable. After the container process data has been persisted, the container will stop, leaving you with a stopped container that contains the checkpoint process data. The output will look something like this:
Performing checkpoint --at=afterAppStart
Launching defaultServer (Open Liberty 22.0.0.11-beta/wlp-1.0.69.cl221020220912-1100) on Eclipse OpenJ9 VM, version 17.0.5-ea+2 (en_US)
CWWKE0953W: This version of Open Liberty is an unsupported early release version.
[AUDIT ] CWWKE0001I: The server defaultServer has been launched.
[AUDIT ] CWWKG0093A: Processing configuration drop-ins resource: /opt/ol/wlp/usr/servers/defaultServer/configDropins/defaults/checkpoint.xml
[AUDIT ] CWWKG0093A: Processing configuration drop-ins resource: /opt/ol/wlp/usr/servers/defaultServer/configDropins/defaults/keystore.xml
[AUDIT ] CWWKG0093A: Processing configuration drop-ins resource: /opt/ol/wlp/usr/servers/defaultServer/configDropins/defaults/open-default-port.xml
[AUDIT ] CWWKZ0058I: Monitoring dropins for applications.
[AUDIT ] CWWKT0016I: Web application available (default_host): http://f5edff273d9c:9080/ibm/api/
[AUDIT ] CWWKT0016I: Web application available (default_host): http://f5edff273d9c:9080/metrics/
[AUDIT ] CWWKT0016I: Web application available (default_host): http://f5edff273d9c:9080/health/
[AUDIT ] CWWKT0016I: Web application available (default_host): http://f5edff273d9c:9080/dev/
[AUDIT ] CWWKZ0001I: Application guide-getting-started started in 0.986 seconds.
[AUDIT ] CWWKC0451I: A server checkpoint was requested. When the checkpoint completes, the server stops.This process currently cannot be done as part of a podman build step because Podman (and Docker) do not provide a way to grant the container image build the necessary Linux capabilities for criu to perform the process checkpoint.
Create the application checkpoint image
So far, we have created the checkpoint process data for the getting-started application and stored it in a stopped container named getting-started-checkpoint-container. The final step is to create a new container image that contains the checkpoint process data. When this container image is started, it will resume the application process right from the point that the checkpoint was created, resulting in an InstantOn application. You can create the new image by running the following podman commit operation:
podman commit getting-started-checkpoint-container getting-started-instantonNow we have two application images named getting-started and getting-started-instanton. Starting a container with the getting-started-instanton container image will show a much faster startup time than the original getting-started image.
Running the instanton application image
Typically, an application container can be started from an application container image with a command like the following:
podman run --rm -p 9080:9080 getting-started-instantonHowever, this command will fail because criu needs some elevated privileges in order to be able to restore the process in-container. When Liberty fails to restore the checkpoint process, it will recover by launching without the checkpoint image and log the following message:
CWWKE0957I: Restoring the checkpoint server process failed. Check the /logs/checkpoint/restore.log log to determine why the checkpoint process was not restored. Launching the server without using the checkpoint image.Running with --privileged option
To grant all the required privileges available you can choose to launch a privileged container with the following command:
podman run --rm --privileged -p 9080:9080 getting-started-instantonIf successful, you will see output like the following:
[AUDIT ] CWWKZ0001I: Application guide-getting-started started in 0.059 seconds.
[AUDIT ] CWWKC0452I: The Liberty server process resumed operation from a checkpoint in 0.088 seconds.
[AUDIT ] CWWKF0012I: The server installed the following features: [cdi-3.0, checkpoint-1.0, concurrent-2.0, distributedMap-1.0, jndi-1.0, json-1.0, jsonb-2.0, jsonp-2.0, monitor-1.0, mpConfig-3.0, mpHealth-4.0, mpMetrics-4.0, restfulWS-3.0, restfulWSClient-3.0, servlet-5.0, ssl-1.0, transportSecurity-1.0].
[AUDIT ] CWWKF0011I: The defaultServer server is ready to run a smarter planet. The defaultServer server started in 0.098 seconds.Running with an unprivileged container
Running fully privileged containers is not recommended. The best practice is to instead reduce the elevated privileges down to only what is required to run the container. You can use the following command to grant the container the necessary privileges without running a fully --privileged container:
podman run \
--rm \
--cap-add=CHECKPOINT_RESTORE \
--cap-add=NET_ADMIN \
--cap-add=SYS_PTRACE \
--security-opt seccomp=unconfined \
--security-opt systempaths=unconfined \
--security-opt apparmor=unconfined \
-p 9080:9080 \
getting-started-instantonThe --cap-add options grant the container the three Linux capabilities that criu requires. The --security-opt options are necessary to grant criu access to the required system calls and access to /proc/sys/kernel/ns_last_pid from the host.
Running with an unprivileged container with confined security
You can further simplify the checkpoint process by reducing the need for the --security-opt options that use unconfined. By default, podman does not grant access to all the system calls that criu needs (defaults specified in the file /usr/share/containers/seccomp.json). First, you need an additional configuration file that grants all the required system calls that criu needs to the container. Second, the host /proc/sys/kernel/ns_last_pid needs to be mounted. You can do both these steps with the following command:
podman run \
--rm \
--cap-add=CHECKPOINT_RESTORE \
--cap-add=NET_ADMIN \
--cap-add=SYS_PTRACE \
--security-opt seccomp=criuRequiredSysCalls.json \
-v /proc/sys/kernel/ns_last_pid:/proc/sys/kernel/ns_last_pid \
-p 9080:9080 \
getting-started-instantonThe --security-opt seccomp= option refers to a file called criuRequiredSysCalls.json. This file specifies the system calls required by criu.
The -v option mounts the host /proc/sys/kernel/ns_last_pid for access by the container.
Depending on your Linux distribution, Podman might use runc or crun by default. To check what container runtime is configured for your Podman installation, run the command podman info and look at the ociRuntime section. If runc is used, make sure you are using version 1.1.3 or higher. For this method to work, you must have a version of runc that is 1.1.3 or greater.
Depending on how up to date your RHEL 8.6 or RHEL 9.0 installation is, you might find that the --security-opt for specifying the criuRequiredSysCalls.json is unnecessary. At the time of writing, the most up-to-date versions of RHEL 8.6 and RHEL 9.0 include a Podman that grants the required system calls to the containers it launches by default. This default makes specifying the --security-opt seccomp=criuRequiredSysCalls.json unnecessary.
{
"defaultAction": "SCMP_ACT_ERRNO",
"defaultErrnoRet": 1,
"archMap": [
{
"architecture": "SCMP_ARCH_X86_64",
"subArchitectures": [
"SCMP_ARCH_X86",
"SCMP_ARCH_X32"
]
},
{
"architecture": "SCMP_ARCH_AARCH64",
"subArchitectures": [
"SCMP_ARCH_ARM"
]
},
{
"architecture": "SCMP_ARCH_MIPS64",
"subArchitectures": [
"SCMP_ARCH_MIPS",
"SCMP_ARCH_MIPS64N32"
]
},
{
"architecture": "SCMP_ARCH_MIPS64N32",
"subArchitectures": [
"SCMP_ARCH_MIPS",
"SCMP_ARCH_MIPS64"
]
},
{
"architecture": "SCMP_ARCH_MIPSEL64",
"subArchitectures": [
"SCMP_ARCH_MIPSEL",
"SCMP_ARCH_MIPSEL64N32"
]
},
{
"architecture": "SCMP_ARCH_MIPSEL64N32",
"subArchitectures": [
"SCMP_ARCH_MIPSEL",
"SCMP_ARCH_MIPSEL64"
]
},
{
"architecture": "SCMP_ARCH_S390X",
"subArchitectures": [
"SCMP_ARCH_S390"
]
},
{
"architecture": "SCMP_ARCH_RISCV64",
"subArchitectures": null
}
],
"syscalls": [
{
"names": [
"accept",
"accept4",
"access",
"adjtimex",
"alarm",
"bind",
"brk",
"capget",
"capset",
"chdir",
"chmod",
"chown",
"chown32",
"clock_adjtime",
"clock_adjtime64",
"clock_getres",
"clock_getres_time64",
"clock_gettime",
"clock_gettime64",
"clock_nanosleep",
"clock_nanosleep_time64",
"close",
"close_range",
"connect",
"copy_file_range",
"creat",
"dup",
"dup2",
"dup3",
"epoll_create",
"epoll_create1",
"epoll_ctl",
"epoll_ctl_old",
"epoll_pwait",
"epoll_pwait2",
"epoll_wait",
"epoll_wait_old",
"eventfd",
"eventfd2",
"execve",
"execveat",
"exit",
"exit_group",
"faccessat",
"faccessat2",
"fadvise64",
"fadvise64_64",
"fallocate",
"fanotify_mark",
"fchdir",
"fchmod",
"fchmodat",
"fchown",
"fchown32",
"fchownat",
"fcntl",
"fcntl64",
"fdatasync",
"fgetxattr",
"flistxattr",
"flock",
"fork",
"fremovexattr",
"fsetxattr",
"fstat",
"fstat64",
"fstatat64",
"fstatfs",
"fstatfs64",
"fsync",
"ftruncate",
"ftruncate64",
"futex",
"futex_time64",
"futex_waitv",
"futimesat",
"getcpu",
"getcwd",
"getdents",
"getdents64",
"getegid",
"getegid32",
"geteuid",
"geteuid32",
"getgid",
"getgid32",
"getgroups",
"getgroups32",
"getitimer",
"getpeername",
"getpgid",
"getpgrp",
"getpid",
"getppid",
"getpriority",
"getrandom",
"getresgid",
"getresgid32",
"getresuid",
"getresuid32",
"getrlimit",
"get_robust_list",
"getrusage",
"getsid",
"getsockname",
"getsockopt",
"get_thread_area",
"gettid",
"gettimeofday",
"getuid",
"getuid32",
"getxattr",
"inotify_add_watch",
"inotify_init",
"inotify_init1",
"inotify_rm_watch",
"io_cancel",
"ioctl",
"io_destroy",
"io_getevents",
"io_pgetevents",
"io_pgetevents_time64",
"ioprio_get",
"ioprio_set",
"io_setup",
"io_submit",
"io_uring_enter",
"io_uring_register",
"io_uring_setup",
"ipc",
"kill",
"landlock_add_rule",
"landlock_create_ruleset",
"landlock_restrict_self",
"lchown",
"lchown32",
"lgetxattr",
"link",
"linkat",
"listen",
"listxattr",
"llistxattr",
"_llseek",
"lremovexattr",
"lseek",
"lsetxattr",
"lstat",
"lstat64",
"madvise",
"membarrier",
"memfd_create",
"memfd_secret",
"mincore",
"mkdir",
"mkdirat",
"mknod",
"mknodat",
"mlock",
"mlock2",
"mlockall",
"mmap",
"mmap2",
"mprotect",
"mq_getsetattr",
"mq_notify",
"mq_open",
"mq_timedreceive",
"mq_timedreceive_time64",
"mq_timedsend",
"mq_timedsend_time64",
"mq_unlink",
"mremap",
"msgctl",
"msgget",
"msgrcv",
"msgsnd",
"msync",
"munlock",
"munlockall",
"munmap",
"nanosleep",
"newfstatat",
"_newselect",
"open",
"openat",
"openat2",
"pause",
"pidfd_open",
"pidfd_send_signal",
"pipe",
"pipe2",
"poll",
"ppoll",
"ppoll_time64",
"prctl",
"pread64",
"preadv",
"preadv2",
"prlimit64",
"process_mrelease",
"pselect6",
"pselect6_time64",
"pwrite64",
"pwritev",
"pwritev2",
"read",
"readahead",
"readlink",
"readlinkat",
"readv",
"recv",
"recvfrom",
"recvmmsg",
"recvmmsg_time64",
"recvmsg",
"remap_file_pages",
"removexattr",
"rename",
"renameat",
"renameat2",
"restart_syscall",
"rmdir",
"rseq",
"rt_sigaction",
"rt_sigpending",
"rt_sigprocmask",
"rt_sigqueueinfo",
"rt_sigreturn",
"rt_sigsuspend",
"rt_sigtimedwait",
"rt_sigtimedwait_time64",
"rt_tgsigqueueinfo",
"sched_getaffinity",
"sched_getattr",
"sched_getparam",
"sched_get_priority_max",
"sched_get_priority_min",
"sched_getscheduler",
"sched_rr_get_interval",
"sched_rr_get_interval_time64",
"sched_setaffinity",
"sched_setattr",
"sched_setparam",
"sched_setscheduler",
"sched_yield",
"seccomp",
"select",
"semctl",
"semget",
"semop",
"semtimedop",
"semtimedop_time64",
"send",
"sendfile",
"sendfile64",
"sendmmsg",
"sendmsg",
"sendto",
"setfsgid",
"setfsgid32",
"setfsuid",
"setfsuid32",
"setgid",
"setgid32",
"setgroups",
"setgroups32",
"setitimer",
"setpgid",
"setpriority",
"setregid",
"setregid32",
"setresgid",
"setresgid32",
"setresuid",
"setresuid32",
"setreuid",
"setreuid32",
"setrlimit",
"set_robust_list",
"setsid",
"setsockopt",
"set_thread_area",
"set_tid_address",
"setuid",
"setuid32",
"setxattr",
"shmat",
"shmctl",
"shmdt",
"shmget",
"shutdown",
"sigaltstack",
"signalfd",
"signalfd4",
"sigprocmask",
"sigreturn",
"socket",
"socketcall",
"socketpair",
"splice",
"stat",
"stat64",
"statfs",
"statfs64",
"statx",
"symlink",
"symlinkat",
"sync",
"sync_file_range",
"syncfs",
"sysinfo",
"tee",
"tgkill",
"time",
"timer_create",
"timer_delete",
"timer_getoverrun",
"timer_gettime",
"timer_gettime64",
"timer_settime",
"timer_settime64",
"timerfd_create",
"timerfd_gettime",
"timerfd_gettime64",
"timerfd_settime",
"timerfd_settime64",
"times",
"tkill",
"truncate",
"truncate64",
"ugetrlimit",
"umask",
"uname",
"unlink",
"unlinkat",
"utime",
"utimensat",
"utimensat_time64",
"utimes",
"vfork",
"vmsplice",
"wait4",
"waitid",
"waitpid",
"write",
"writev",
"arch_prctl",
"chroot",
"clone",
"clone3",
"fallocate",
"fanotify_init",
"fsconfig",
"fsmount",
"fsopen",
"guarded_storage",
"kcmp",
"lseek",
"mmap",
"mount",
"open",
"open_by_handle_at",
"openat",
"pivot_root",
"preadv",
"process_vm_readv",
"ptrace",
"readdir",
"s390_runtime_instr",
"setns",
"sigaction",
"signal",
"syscall",
"umount",
"umount2",
"unshare",
"userfaultfd",
"wait"
],
"action": "SCMP_ACT_ALLOW"
},
{
"names": [
"process_vm_readv",
"process_vm_writev",
"ptrace"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"minKernel": "4.8"
}
},
{
"names": [
"personality"
],
"action": "SCMP_ACT_ALLOW",
"args": [
{
"index": 0,
"value": 0,
"op": "SCMP_CMP_EQ"
}
]
},
{
"names": [
"personality"
],
"action": "SCMP_ACT_ALLOW",
"args": [
{
"index": 0,
"value": 8,
"op": "SCMP_CMP_EQ"
}
]
},
{
"names": [
"personality"
],
"action": "SCMP_ACT_ALLOW",
"args": [
{
"index": 0,
"value": 131072,
"op": "SCMP_CMP_EQ"
}
]
},
{
"names": [
"personality"
],
"action": "SCMP_ACT_ALLOW",
"args": [
{
"index": 0,
"value": 131080,
"op": "SCMP_CMP_EQ"
}
]
},
{
"names": [
"personality"
],
"action": "SCMP_ACT_ALLOW",
"args": [
{
"index": 0,
"value": 4294967295,
"op": "SCMP_CMP_EQ"
}
]
},
{
"names": [
"sync_file_range2",
"swapcontext"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"arches": [
"ppc64le"
]
}
},
{
"names": [
"arm_fadvise64_64",
"arm_sync_file_range",
"sync_file_range2",
"breakpoint",
"cacheflush",
"set_tls"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"arches": [
"arm",
"arm64"
]
}
},
{
"names": [
"arch_prctl"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"arches": [
"amd64",
"x32"
]
}
},
{
"names": [
"modify_ldt"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"arches": [
"amd64",
"x32",
"x86"
]
}
},
{
"names": [
"s390_pci_mmio_read",
"s390_pci_mmio_write",
"s390_runtime_instr"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"arches": [
"s390",
"s390x"
]
}
},
{
"names": [
"riscv_flush_icache"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"arches": [
"riscv64"
]
}
},
{
"names": [
"open_by_handle_at"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_DAC_READ_SEARCH"
]
}
},
{
"names": [
"bpf",
"clone",
"clone3",
"fanotify_init",
"fsconfig",
"fsmount",
"fsopen",
"fspick",
"lookup_dcookie",
"mount",
"mount_setattr",
"move_mount",
"name_to_handle_at",
"open_tree",
"perf_event_open",
"quotactl",
"quotactl_fd",
"setdomainname",
"sethostname",
"setns",
"syslog",
"umount",
"umount2",
"unshare"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_ADMIN"
]
}
},
{
"names": [
"clone"
],
"action": "SCMP_ACT_ALLOW",
"args": [
{
"index": 0,
"value": 2114060288,
"op": "SCMP_CMP_MASKED_EQ"
}
],
"excludes": {
"caps": [
"CAP_SYS_ADMIN"
],
"arches": [
"s390",
"s390x"
]
}
},
{
"names": [
"clone"
],
"action": "SCMP_ACT_ALLOW",
"args": [
{
"index": 1,
"value": 2114060288,
"op": "SCMP_CMP_MASKED_EQ"
}
],
"comment": "s390 parameter ordering for clone is different",
"includes": {
"arches": [
"s390",
"s390x"
]
},
"excludes": {
"caps": [
"CAP_SYS_ADMIN"
]
}
},
{
"names": [
"clone3"
],
"action": "SCMP_ACT_ERRNO",
"errnoRet": 38,
"excludes": {
"caps": [
"CAP_SYS_ADMIN"
]
}
},
{
"names": [
"reboot"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_BOOT"
]
}
},
{
"names": [
"chroot"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_CHROOT"
]
}
},
{
"names": [
"delete_module",
"init_module",
"finit_module"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_MODULE"
]
}
},
{
"names": [
"acct"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_PACCT"
]
}
},
{
"names": [
"kcmp",
"pidfd_getfd",
"process_madvise",
"process_vm_readv",
"process_vm_writev",
"ptrace"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_PTRACE"
]
}
},
{
"names": [
"iopl",
"ioperm"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_RAWIO"
]
}
},
{
"names": [
"settimeofday",
"stime",
"clock_settime"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_TIME"
]
}
},
{
"names": [
"vhangup"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_TTY_CONFIG"
]
}
},
{
"names": [
"get_mempolicy",
"mbind",
"set_mempolicy"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYS_NICE"
]
}
},
{
"names": [
"syslog"
],
"action": "SCMP_ACT_ALLOW",
"includes": {
"caps": [
"CAP_SYSLOG"
]
}
}
]
}How fast is it?
We tested multiple applications to show how startup time is reduced with InstantOn.
-
Pingperf is a very simple ping-type application involve a single REST endpoint.
-
Rest crud is a bit more complicated, and involves JPA and a remote database.
-
AcmeAir Microservice Main makes use of the MicroProfile features.
These experiments were run on a 24 core system. I used taskset -c to allocate 4 CPUs to the Liberty process running in container. The InstantOn times were taken using the afterAppStart checkpoint phase. Startup time is measured from the time the Liberty server startup is initiated to the time the server is ready to accept requests, as denoted by the message "The <server name> server is ready to run a smarter planet." in the messages.log. The time it takes to start the container itself up has been filtered out. InstantOn versus normal startup times for these applications are shown here in milliseconds. Your results may vary based on your environment, hardware and software installed on your system, and other factors. Lower is better:
InstantOn offers a large startup savings of up to 90% depending on the application. All applications are not the same, so you might see different results with your applications.
What is next?
This post described the details of using Open Liberty InstantOn beta to produce an application container image with InstantOn startup times. This support currently allows for only Open Liberty features that are included as part of the Liberty webProfile-8.0, webProfile-9.1, microProfile-4.1 and microProfile-5.0 umbrella features. We hope to expand that to include future versions of webProfile and microProfile, as well as to expand support to the Jakarta full profile features (e.g. jakarta-8.0, jakarta-9.1, jakarta-10.0).
With InstantOn, you can build very fast startup application containers that can be deployed with scale-to-zero as an option. We look forward to a future blog post that describes how to deploy Open Liberty InstantOn in cloud environments such as Red Hat OpenShift Container Platform (OCP) and Kubernetes (k8s) with technologies that can auto-scale applications to zero, such as Knative.
