Request Timing Metrics plus a number of significant bug fixes in Open Liberty 21.0.0.6

image of author
Jakub Pomykala on Jun 11, 2021
announcements , microprofile , release , metrics ,
Post available in languages:

Open Liberty 21.0.0.6 brings improvements to the MicroProfile Metrics feature, allowing for information gathered via the Request Timing feature to be displayed on the metrics endpoint, plus a number of significant bug fixes.

In Open Liberty 21.0.0.6:

View the list of fixed bugs in 21.0.0.6.

Run your apps using 21.0.0.6

If you’re using Maven, here are the coordinates:

<dependency>
    <groupId>io.openliberty</groupId>
    <artifactId>openliberty-runtime</artifactId>
    <version>21.0.0.6</version>
    <type>zip</type>
</dependency>

Or for Gradle:

dependencies {
    libertyRuntime group: 'io.openliberty', name: 'openliberty-runtime', version: '[21.0.0.6,)'
}

Or if you’re using Docker:

FROM open-liberty

Or take a look at our Downloads page.

Ask a question on Stack Overflow

Request Timing now supported by MicroProfile Metrics

The request timing feature (requestTiming-1.0) is used to keep track of the slow and hung requests for servlet requests with a RequestTimingStats MXBean. The Microprofile Metrics features (mpMetrics-X.X) on the other hand provides vendor metrics that are distinct to the Open Liberty runtime.

Starting with the Open Liberty 21.0.0.6 the RequestTimingStats MXBean will now have its data retrieved by the MicroProfile Metrics feature for reporting on the /metrics (or /metrics/vendor) endpoint. This functionality is compatible with both the 2.X and 3.X MicroProfile Metrics features.

The following example shows a sample output of the new request timing metrics:

# TYPE vendor_requestTiming_activeRequestCount gauge
# HELP vendor_requestTiming_activeRequestCount The number of servlet requests currently running.
vendor_requestTiming_activeRequestCount 1

# TYPE vendor_requestTiming_requestCount_total counter
# HELP vendor_requestTiming_requestCount_total The number of servlet requests since the server started.
vendor_requestTiming_requestCount_total 3

# TYPE vendor_requestTiming_hungRequestCount gauge
# HELP vendor_requestTiming_hungRequestCount The number of servlet requests that are currently running but are hung.
vendor_requestTiming_hungRequestCount 0

# TYPE vendor_requestTiming_slowRequestCount gauge
# HELP vendor_requestTiming_slowRequestCount The number of servlet requests that are currently running but are slow.
vendor_requestTiming_slowRequestCount 0

To be able to retrieve request timing metrics from /metrics you must enable both the requestTiming-1.0 feature in combination with one of the following MicroProfile Metric features: mpMetrics-2.0, mpMetrics-2.2 or mpMetrics-2.3 or mpMetric-3.0.

The metrics you receive depend on the configuration of the request timing thresholds for slow or hung requests. The following example demonstrates enabling request timing metrics for mpMetrics-3.0, with a sample threshold configuration for both slow and hung servlet requests.

    <featureManager>
      <feature>mpMetrics-3.0</feature>
      <feature>requestTiming-1.0</feature>
      <!-- other features omitted for brevity -->
    </featureManager>

    <requestTiming sampleRate="1" slowRequestThreshold="10s">
      <servletTiming
        slowRequestThreshold="2s"
        hungRequestThreshold="10s"/>
    </requestTiming>

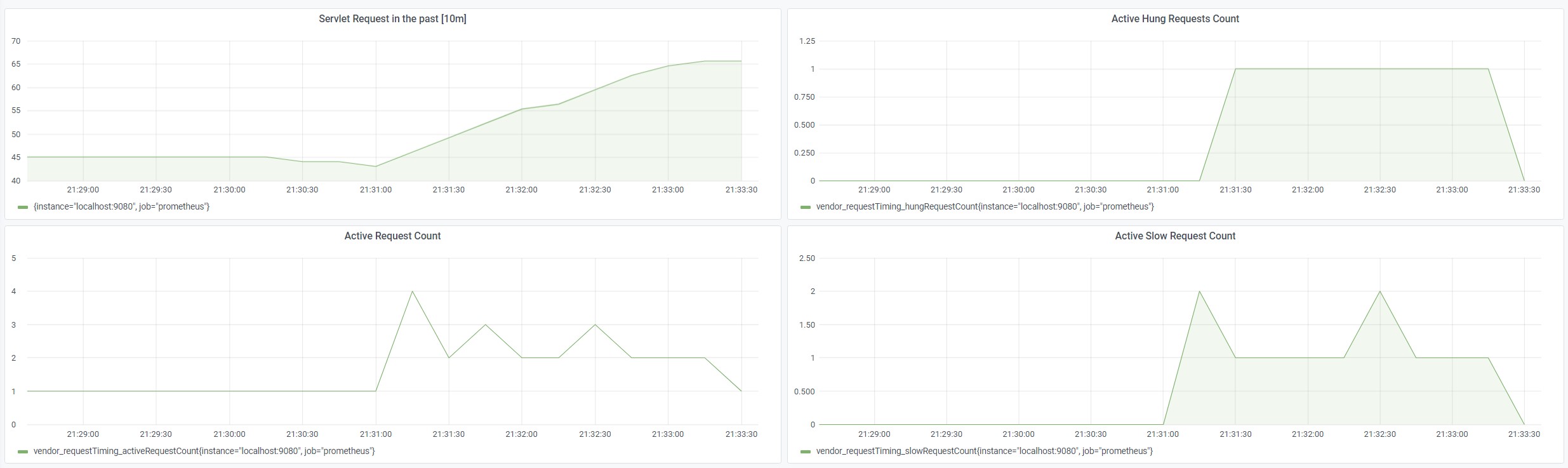

The following screenshot illustrates the four new metrics in Grafana.

requestCountThings

For more information about Request Timing with MicroProfile Metrics, see the following links:

Notable bugs fixed in this release

We’ve spent some time fixing bugs. The following sections describe just some of the issues resolved in this release. If you’re interested, here’s the full list of bugs fixed in 21.0.0.6.

  • useJandex is ignored when autoExpand is set

    Normally, Open Liberty reads Jandex indexes when useJandex is set to true. For this APAR, when both autoExpand and useJandex were set to true, the useJandex setting was not used, meaning that Jandex indexes were not being read. This impacted first startups, causing them to be slower than if Jandex indexes were read. (A first startup is a startup just after an application archive is placed into the applications folder; or a startup just after the application archive is updated; or when --clean is specified on the startup.) The problem was that the useJandex setting was attached to a data structure that Open Liberty uses to access unexpanded application files. Open Liberty uses a different data structure to access the expanded application files. The useJandex setting was not attached to the second data structure. The problem was fixed by adding steps to transfer the useJandex setting to the data structure used by Open Liberty to access the expanded application files.

  • ORB.init() called simultaneously on two threads during server start

    We found a problem in the Liberty ORB initialization code, based on a false assumption that the Java AtomicReference.getAndUpdate() would only call the provided updateFunction once for any update to the reference value. In fact, though it guarantees the update to the reference’s value to be atomic, the updateFunction might be called by several threads contending to perform the update. To provide the behavior we required, we devised our own concurrent utility, AcidReference, which was built by using AtomicReference and guarantees the updateFunction is only called once, by one of the threads contending for update. Making use of this new AcidReference allows any contention in ORB initialization in Liberty to be resolved correctly, tasking one thread to perform the ORB initialization while any others wait for its result.

  • Failed to locate DataSource, null Resourcefactory

    A problem was found where a user feature is deployed which references a relational database and the server is running applications which use global transactions. If transaction recovery is attempted before data source initialization completed, the server reports InternalLogExceptions and fails to start. The problem occurs intermittently at server startup. The problem occurs only if transaction recovery logs are configured to be stored in a database.

The problem does not occur if the default case where transaction recovery logs are stored in a filesystem.

The problem was fixed by a code update which better coordinates transaction recovery and data source initialization.

  • Revision to httpOption maxKeepAliveRequest default value

    By default, the Liberty HTTP channel configuration closes an incoming HTTP keep alive connection after 100 requests (maxKeepAliveRequests). The WAS Liberty performance documentation recommends disabling this without qualification and recommends using unlimited requests per persistent connection. Note that there is still the persistent timeout of 30 seconds (persistTimeout) which closes an idle keepalive socket after 30 seconds.

    In order to improve performance, it was decided to change the default of the maxKeepAliveRequests option to -1.

  • Pull in MyFaces 2.3.9

    The jsf-2.3 feature in Open Liberty makes use of Apache MyFaces JavaServer Faces implementation. With the release of Apache MyFaces 2.3.9 a number of improvements and bug fixes have been made. For more information visit the Apache MyFaces 2.3.9 changelog.

  • WASReqURLOidc cookie encodes the request url but doesn’t decoded it upon successful redirection

    When calling an OIDC-protected URL that includes query parameters, the URL in the WASReqURLOidc cookie was incorrectly encoded. This would cause the URL query parameters to not be decoded correctly upon successful redirection to the original request URL. To fix this issue, instead of encoding the query string in the original request URL, we are leaving it as-is. That should ensure we ultimately use the correct original value of the query string. During the creation of the WASReqURLOidc cookie, the cookie value is encoded to mitigate against malformed and potentially malicious cookie values anyway. The OidcRedirectServlet class is also updated to use slightly different code to read the cookie so that the appropriate respective decoding is done.

  • mpJWT-1.1 configured by using jwksUri results in CWWKS5523E at the first jwt token presented to the server

    The JwkRetriever class contained a bug that caused it to potentially return an incorrect JWK from an internal cache. The wrong key could be returned if a JWK document containing a single JWK was previously fetched and cached, followed by the Liberty server receiving a JWT with a kid value that didn’t match the cached JWK. Instead of attempting to re-fetch the JWK document to find a matching JWK, the Liberty runtime would return the cached JWK as the key to use to verify the JWT’s signature. That would cause a JWT signature verification error, which would fail the request. The JwkRetriever class was updated to return the sole cached JWK only if the JWT does not contain a key identifier (e.g. kid, x5t, or use values). If the JWT does contain one of those values, but a key cannot be found in the cache that matches one of those values, the runtime will re-fetch the JWK document and see if it can find a matching key from within the document.

Known issues

In this release, a couple of issues were discovered. If you would like to find out more, you can check out the corresponding Github Issues linked bellow.

  • Remove system out

    An extra message is output to the console during server startup. It will only show when creating a certificate and on the first server start. Subsequent server starts will not see it.

  • Invalid featureUtility help parameters shown

    Invalid command line optional parameters (--featuresBom) and (--to) are shown with "featureUtility help installFeature". Invalid command line optional parameter (--featuresBom) is shown with "featureUtility help installServerFeatures"

Get Open Liberty 21.0.0.6 now

Available through Maven, Gradle, Docker, and as a downloadable archive.
