Asynchronous programming made resilient with MicroProfile Fault Tolerance: Part 1

Joseph Cass and Andrew Rouse on Jun 4, 2020

microprofile ,

Post available in languages:

Java 8 has long-term support and is the most commonly used Java version. It has many awesome features—one of which is the CompletionStage interface. CompletionStage provides new ways to write asynchronous code. Great stuff! However, you might have the following questions:

How can I make my asynchronous methods resilient to faults? What if an asynchronous method unexpectedly returns an exception?

MicroProfile Fault Tolerance is here to help! There are many different annotations that MicroProfile Fault Tolerance provides to help you deal with failure: @Retry, @Timeout, @CircuitBreaker, @Bulkhead and @Fallback.

But there’s one, in particular, that’s going to help you make your asynchronous methods resilient to faults: @Asynchronous. Let’s look what @Asynchronous does and how it does it.

What does @Asynchronous do?

Adding the @Asynchronous annotation to a method does two things:

Runs the method asynchronously
If the method returns a CompletionStage, applies other Fault Tolerance strategies to the result of the CompletionStage, rather than to the result of the method

Adding the @Asynchronous annotation to a method makes the method run asynchronously, meaning that rather than the annotated method running straight away on the main thread when it’s called, it will run sometime later, usually on another thread. To use it, you need to add the @Asynchronous annotation to a method, and it must return either a CompletionStage or a Future. You cannot apply Fault Tolerance to a returned Future, so a CompletionStage is preferred.

@Asynchronous
public CompletionStage<String> serviceA() {

        return CompletableFuture.completedFuture("serviceA");

}

This example uses CompletableFuture.completedFuture() to make the result compatible with the CompletionStage return type. CompletableFuture is an implementation of the CompletionStage and Future interfaces.

What happens when the serviceA() method is called?

Usually when a method is called, it returns a result. However, when the @Asynchronous annotation is used, Fault Tolerance intervenes. When the annotated method is called, Fault Tolerance first schedules the method to run later on a different thread, then it returns a CompletionStage or Future. This isn’t the CompletionStage or Future that’s returned from the method, because the method hasn’t run yet. It’s an object that Fault Tolerance creates.

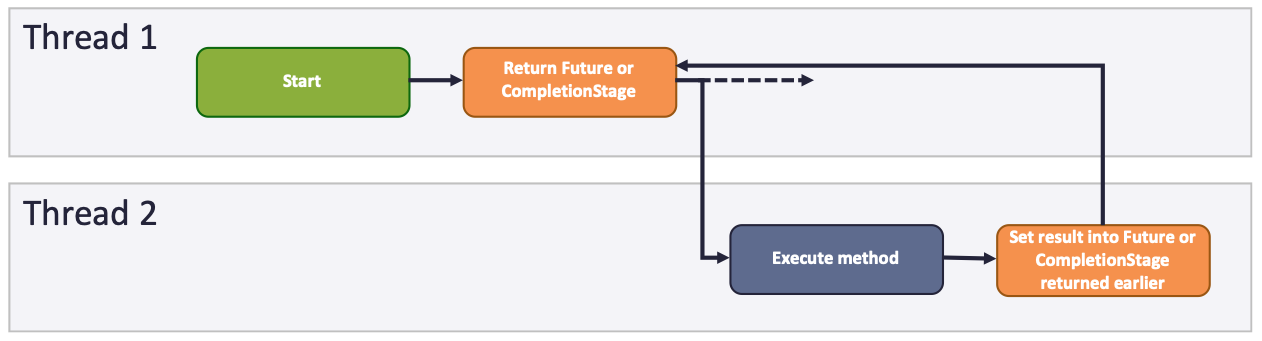

Fault Tolerance asynchronous execution flow

Sometime later, the method runs and returns a CompletionStage or Future.

If the method returns a Future, then the last step is for Fault Tolerance to update the Future it previously returned to the user so that it delegates to the Future returned from the method, allowing the user to see the result from the method.

However, if the method returns a CompletionStage, Fault Tolerance waits for the CompletionStage to complete, before completing the CompletionStage it previously returned to the user. Additionally, if the CompletionStage from the method completes with an exception, then other Fault Tolerance policies are applied, just as if that exception was thrown from the method body itself. This last step is crucial for allowing Fault Tolerance to work with other APIs that return a CompletionStage, as we’ll see in the next section.

@Asynchronous use cases

So @Asynchronous sounds great, right? But how can you use it to make your asynchronous programs resilient? Let’s go through two use cases:

Applying Fault Tolerance to an API call that is already asynchronous
Using the @Asynchronous annotation to do multiple things in parallel with resilience

1. Applying Fault Tolerance to an asynchronous API call

One use of @Asynchronous is to apply Fault Tolerance to an asynchronous API call, which returns a CompletionStage. Without @Asynchronous, you wouldn’t be able to apply Fault Tolerance to the call. Let’s see why.

In this example, we’ll use the .rx() method in the JAX-RS client API for calling remote REST services asynchronously. This method was introduced in JAX-RS 2.1. We can build up a request to fetch a String from a given URL with a GET request, where the return type is a CompletionStage of String:

private Client client = ClientBuilder.newClient();

public CompletionStage<String> clientDemo() {

        CompletionStage<String> response = client.target("http://example.com/resource")
                                        .request(MediaType.TEXT_PLAIN)
                                        .rx()
                                        .get(String.class);

        return response;

}

If we call the clientDemo() method without any annotations, it works as we expect. We call it, receive a CompletionStage<String> (named response in the example), and then we can add an action to take when the CompletionStage completes:

response.thenAccept(System.out::println);
--> responseText

If we wanted to retry any failed requests, we might add the @Retry annotation to the method, but surprisingly this wouldn’t work!

Even if the HTTP request fails, the request doesn’t get retried because Fault Tolerance acts around method calls. Normally, if you annotate a method with @Retry and it throws an exception, then it gets retried. However, when we do an HTTP request through this JAX-RS client API, it can’t throw an exception if there’s a problem with a request. The request is processed asynchronously, so when the method returns, the request probably hasn’t started yet, let alone found out that it failed. If an exception does occur, it’s propagated to the CompletionStage and can be handled there. The result is that the method will never throw an exception, even if the request fails, meaning that the request will never be retried.

@Asynchronous to the rescue!

If we add the @Asynchronous annotation and the method returns a CompletionStage, then the Fault Tolerance logic gets applied when the CompletionStage completes, rather than when the method returns:

@Asynchronous
@Retry
public CompletionStage<String> clientDemo() {

        ...

}

When we call the clientDemo() method and it returns a CompletionStage, Fault Tolerance looks at the result and decides whether to retry when the returned CompletionStage completes. If the request fails, the CompletionStage completes with an exception, and Fault Tolerance decides that a retry is needed and calls the method again. As before, Fault Tolerance intercepts the method call, so the CompletionStage returned to the caller is a different CompletionStage so that the caller doesn’t get the result until all retries are completed.

To recap, to use Fault Tolerance with an asynchronous method you must:

Return a CompletionStage from your method - You can’t do this with a Future, it must be with a CompletionStage.
Use the @Asynchronous annotation - Without it, the method will never throw an exception, even if it fails.

When you do these two things, all the other Fault Tolerance logic is applied when the CompletionStage completes, rather than when the method returns.

You can also use other Fault Tolerance annotations with @Asynchronous to make your asynchronous method resilient. For more detail on that, see Part 2 of this blog post.

2. Let’s go parallel!

To run multiple methods in parallel, we can write methods that call other services, annotate them with the @Asynchronous annotation, then call them like this:

@Inject
private RequestScopedClass1 requestScopedBean1;

@Inject
private RequestScopedClass2 requestScopedBean2;

public CompletionStage<String> callServicesAsynchronously()  {

        CompletionStage<String> result1 = requestScopedBean1.serviceA(); // Where serviceA is annotated with @Asynchronous
        CompletionStage<String> result2 = requestScopedBean2.serviceB(); // Where serviceB is annotated with @Asynchronous

        ...

}

First, serviceA() is called, and then serviceB(). However, because both services are annotated with @Asynchronous, they are executed simultaneously on different threads, rather than sequentially.

Any other Fault Tolerance annotations can also be used. For example, we can add a @Retry to serviceA() and a @Timeout to serviceB():

@RequestScoped
public class RequestScopedClass1 {

        @Retry
        @Asynchronous
        public CompletionStage<String> serviceA() {

                doSomethingWhichMightFail()
                return CompletableFuture.completedFuture("serviceA");

        }
}

@RequestScoped
public class RequestScopedClass2 {

        @Timeout
        @Asynchronous
        public CompletionStage<String> serviceB() {

                doSomethingWhichMightFail()
                return CompletableFuture.completedFuture("serviceB");

        }
}

If serviceA() needs several retries, then a call to retrieve the result, such as CompletionStage.thenAccept(), won’t return until all the retries are complete.

Thanks for reading!

We hope you’ve learned how to use MicroProfile Fault Tolerance to make your asynchronous programming resilient. If you want to learn more about Fault Tolerance, check out some Open Liberty Fault Tolerance guides. If you want to get involved in MicroProfile Fault Tolerance, check out the Git repo. For more information about using @Asynchronous, including how @Asynchronous interacts with other Fault Tolerance annotations and the limitations of using a Future, head over to Part 2 of this blog post.
